Specifications
Bavaria ’49 2003
Length over all |
50.5′ |
15.40 m |
Power (Volvo Penta) |
78 hp |
57 kw |
|
Length hull | 49′ | 14.95 m | Fuel (main tank) | 85 gal | 210 lt | |
Length water line | 43′ | 13.10 m | Fuel (additional tank) | 40 gal | 150 lt | |
Beam |
14.6′ |
4.46 m |
Water | 171 gal | 460 lt | |
Draught/Draft |
6.9′ | 2,10 m | Waste | 20 gal | 75 lt | |
Displacement |
24,250 lbs |
11,000 Kg |
Hot Water |
6 gal |
23 lt |
|
Ballast |
8,597 lbs |
3,900 Kg |

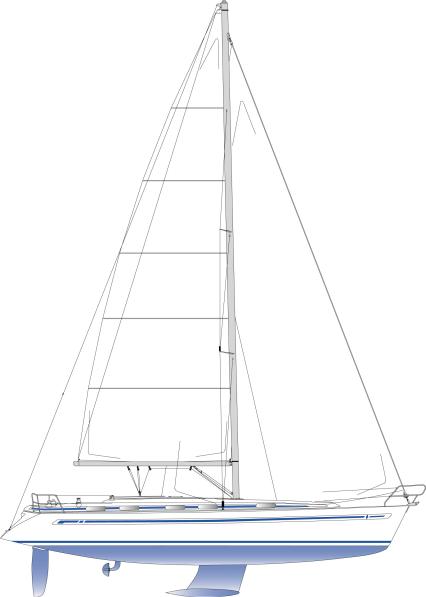

Furling mainsail |
498 ft² |
46.3 m² |
|
Mast height above water | 63.6′ | 19,4 m | Furling genoa | 754 ft² | 70.1 m² |
Additions and/or Modifications
Sails:
-
Reinforced furling mainsail with vertical battens [575 ft² or 53.4. m²]
(Standard furling mainsail becomes a backup main) -
Asymmetric spinnaker
-
Furling storm jib on second stay
-
Storm mainsail with separate mast track
Ease of Navigation:
-
Furling mainsail and genoa (per above)
-
Electric primary winches (two speeds plus they can operate both power assisted or manually)
- Selden rigid boom vang
- Spinnaker pole mounted on mast
- Two steering wheels
-
Bow thruster
- Collapsible propeller
- Electric windlass, anchor and chain
Comfort:
-
Teak side decks
-
Cockpit table
-
Dodger/Bimini with complete cockpit enclosure
-
Three bathrooms (all with showers, 2 with electric pumps)
-
Roll-Up inflatable dinghy 9′ with small portable motor 4HP
Safety:
-
Parachute sea anchor
-
Jackline and harnesses
-
Self inflatable fully-equipped liferaft canister (10 pax)
-
Radio beacon (ACR Satellite 2 SSM)
- Man overboard MOB alarm system (One receiver with loudspeaker and two inflatable lifejackets with transmitters)
